Brif Inctroduction for AMPBANK M256

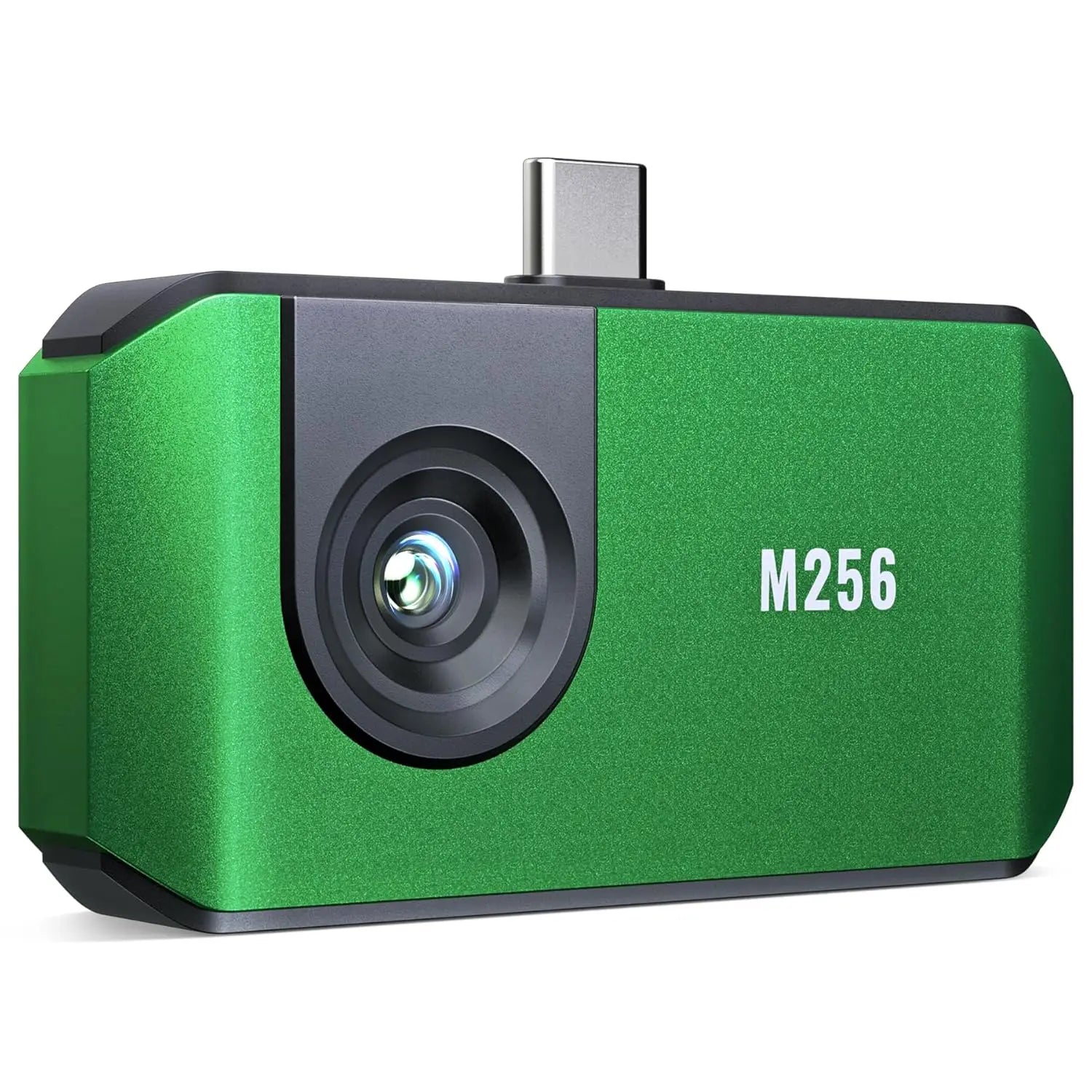

• 【High Resolution, Low Consumption】With super-high IR resolution of 256x192, the TOPDON AMPBANK M256 thermal scanner displays a thermal picture of your target with high resolution. Connect the AMPBANK M256 to a smartphone or a tablet, and the electronic devices will power the AMPBANK M256. With consumption of only 0.25W, the AMPBANK M256 works 4-7 hours for phones with 3000-5000mAh.

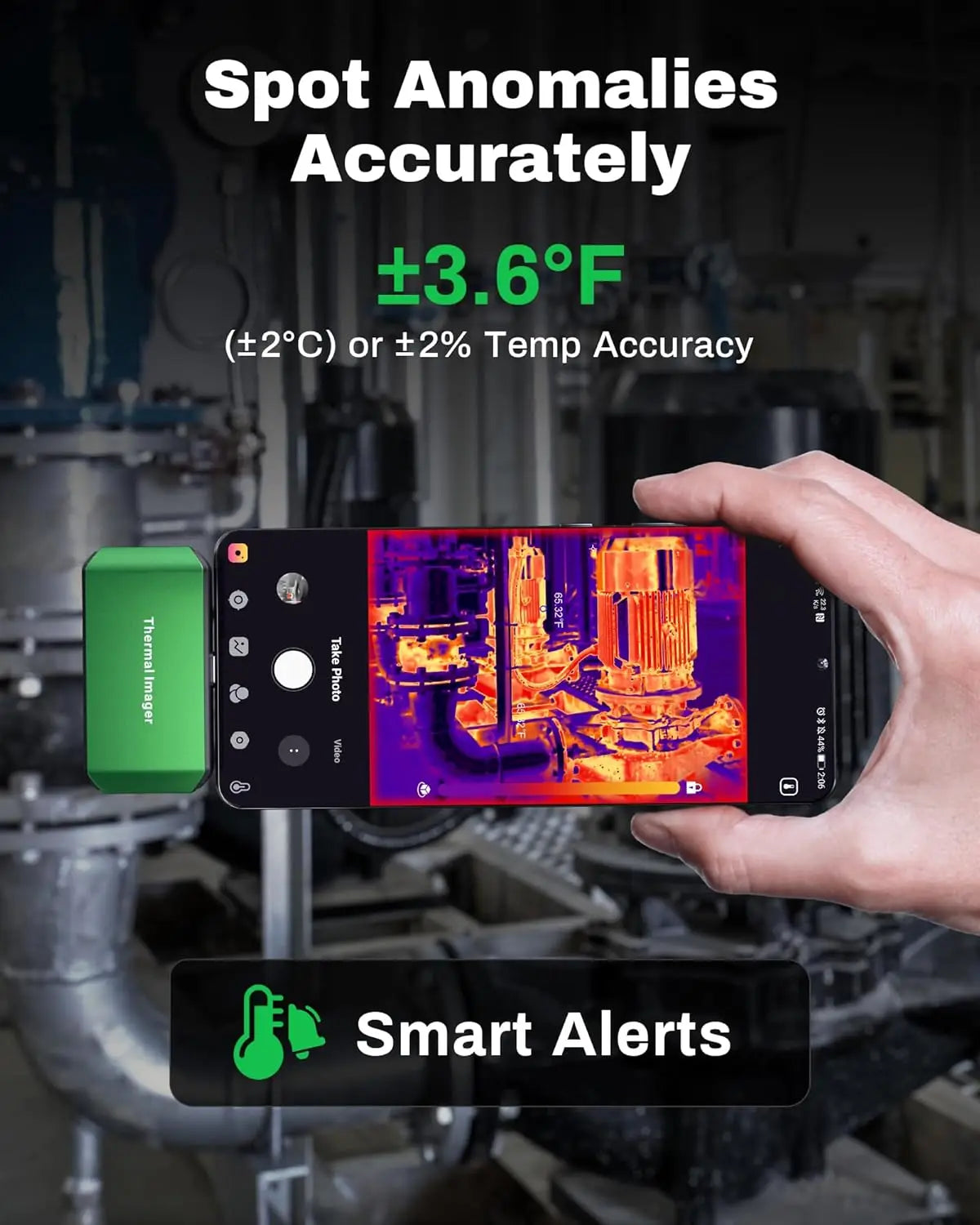

• 【Precise Temperature Detection】With an enhanced testing range of -4℉ to 842℉ (-20℃ to 450℃), this infrared camera can perform temperature readings accurate within 3.6℉ (2℃) or 2% of the object’s actual temperature, and measure the temperature to 0.1℃ accuracy. The AMPBANK M256 can take continuous measurements of a scene and generate a waveform graph with the high, low, and average temperatures of objects.

• 【Dimensions and 9 Color Palettes】User can manually select 3 dimensions to check temperature in the AMPBANK M256 App: Point, Line (Highest and Lowest) and Surface (Highest and Lowest) detection. With up to 3 areas for each dimension, the TC can read temperatures in 9 areas simultaneously. 9 color palettes allow users to read the temperature differences in a scene with the gradient colors of their choice.

• 【Image Enhancement Technology】TOPDON’s image enhancement technology makes the field of view clearer and more detailed by adjusting image sharpness and contrast. Image rotation function allows users to view the temperature in different angles without rotating your phones. With the image fusion function, the infrared imager can combine the IR image and visible image taken by a mobile camera.

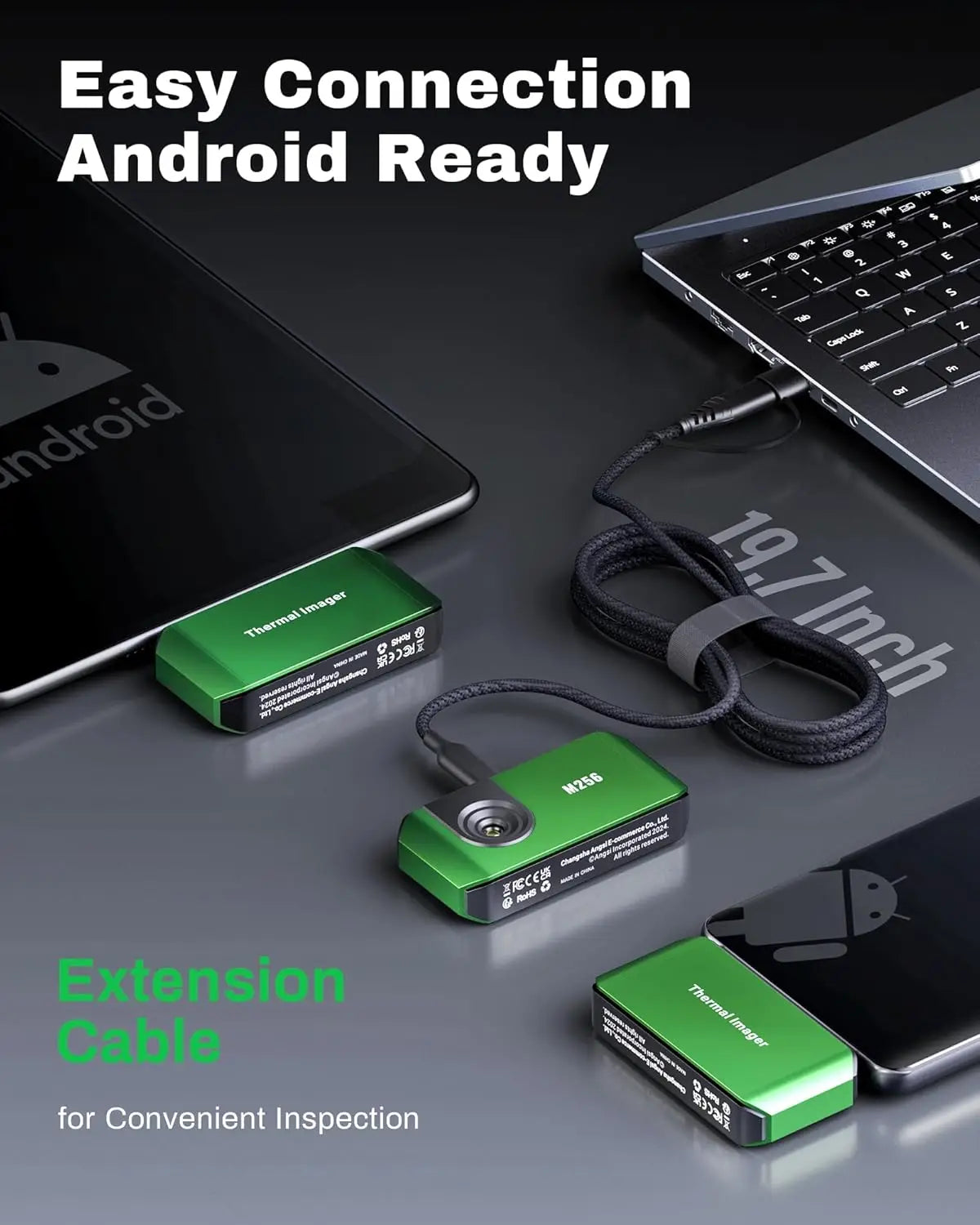

• 【Compact and Adaptable】Measuring 2.8x1.65x0.55 inches and weighing one ounce (or 30 grams), the thermal imager is portable, and easily pairs with android phones, allowing you to monitor temperature whenever and wherever. A 19.7 inch cable offers extended length with a USB converter to bring more flexibility to temperature reading. Anti-dust EVA bag and wiping cloth provide protection and cleaning.

Turn your android phone into a thermal imaging camera using the AMPBANK M256

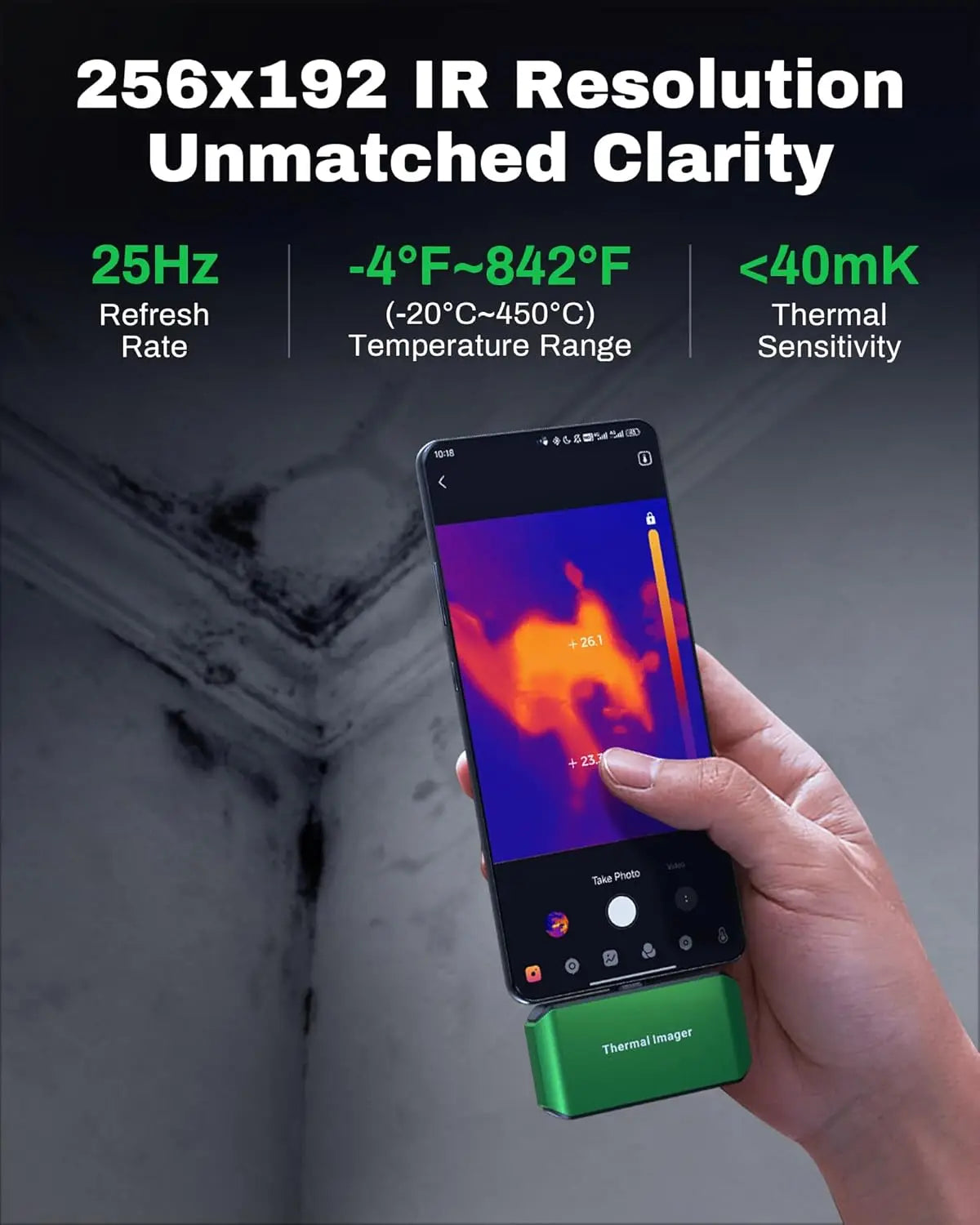

Connect the AMPBANK M256 to your charging port, download the app, and perform specialized jobs. The AMPBANK M256 now makes high-resolution thermal imaging widely available. The TC series offers high-quality imaging (256 x 192 pixels), high temperature sensitivity (40mK), and high accuracy (within 3.6℉ of the actual temperature). This tool is perfect for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock.

THE PERFECT TOOL FOR ESSENTIAL INSPECTIONS

-Air Leakage Inspection
-Water Leakage Inspection
-Electrical Inspection
-Cylinder Inspection
-Insulation Inspection
-Hive Inspection
-Greenhouse Inspection
-Protct Crops and Livestock

A VERSATILE THERMAL CAMERA

-Boat Inspection
-Frontier Inspection
-Boiler Inspection
-Supply Circuit Inspection
-Electrical Inspection

MAKE WORK EASIER WITH THE AMPBANK M256

Compatible and Flexible

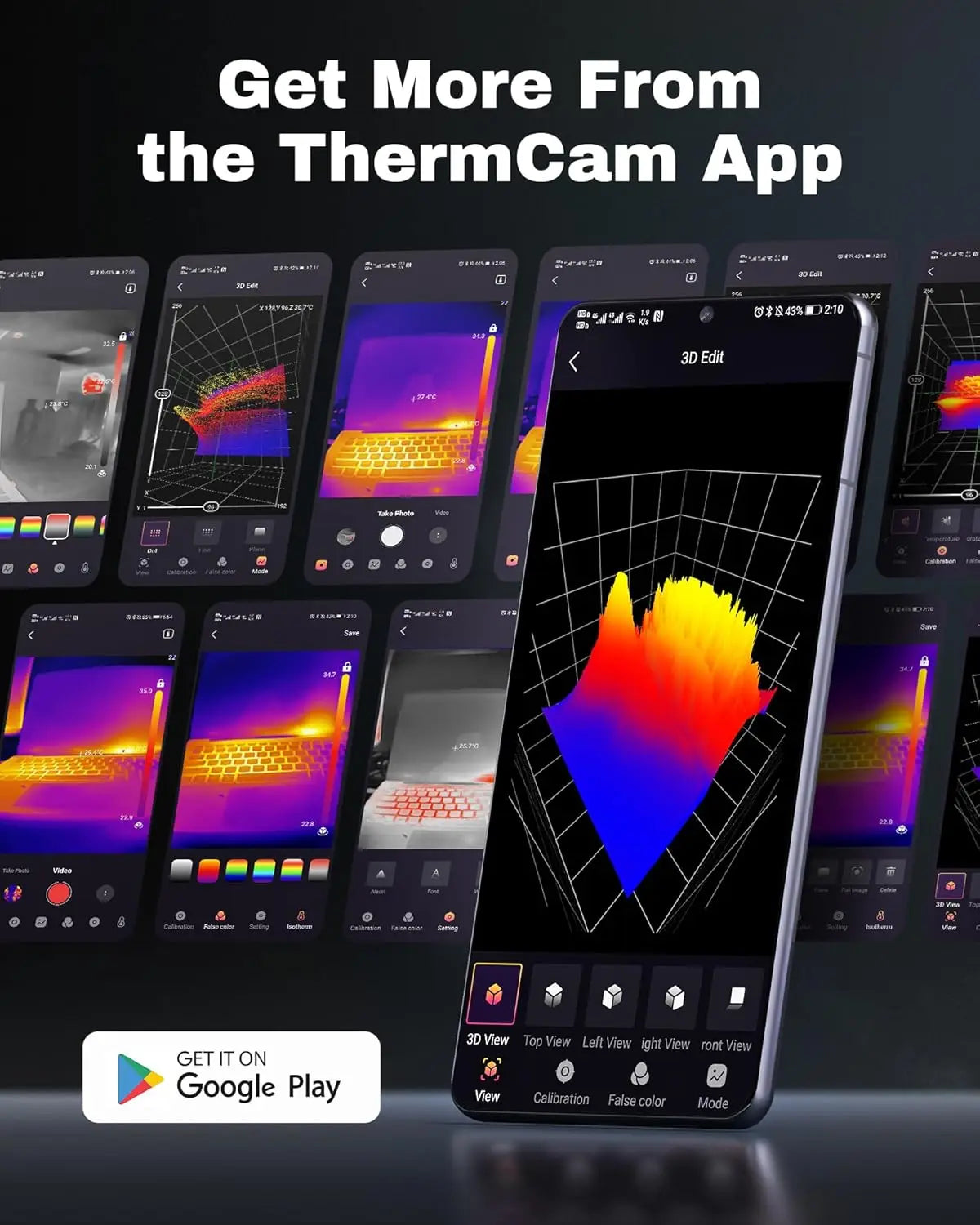

The TOPDON AMPBANK M256 infrared thermal camera is compatible with Android phones that support OTG functions. Users can download the AMPBANK M256 app from Google Play and transform your smartphone or tablet into an all-purpose thermal camera. The AMPBANK M256 also supports Windows and laptops with the TCView app which can be downloaded from the TOPDON official website. No registration is required if you only want to read temperatures.

TOPDON'S BEST-IN-CLASS THERMAL CAMERAl

Read the temperatures of more objects ranging from -4℉ to 842℉ (-20℃ to 450℃).lManually select from 3 dimensions to monitor temperatures: Point, Line (Highest and Lowest), Surface (Highest and Lowest). This enables up to 9 areas at your disposal for Android Phones or Tablets, and unlimited areas in Windows laptops.lDIY upper and lower limits, and corresponding colors to view temperature intuitively.lAdjust image sharpness and contrast for a more precise view.lMonitor Temperature Change by Waveform Graph.l9 color palettes for mobile users and 99 color palettes available on laptops.lImage rotation allows users to view the temperature in different angles without rotating your phones frequently.

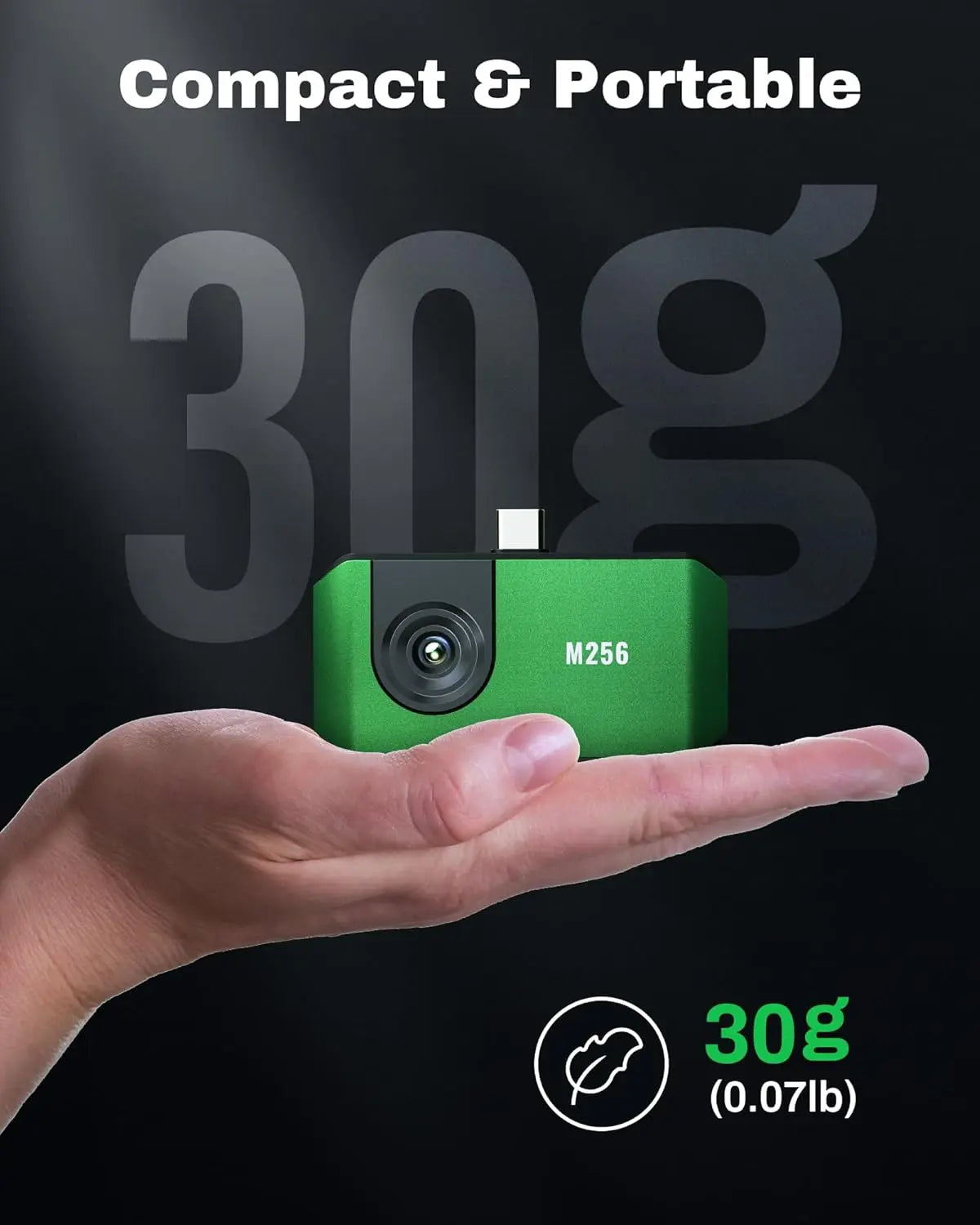

Built for Portability

Measuring 2.8 x 1.65 x 0.55 inches, and weighing one ounce (or 30 grams), the thermal imager is portable and easily pairs with android phones. The body is rugged and drop resistant for more confidence when you are on the job.

ADVANCED CONFIGURATION

WHAT'S IN THE BOX?
