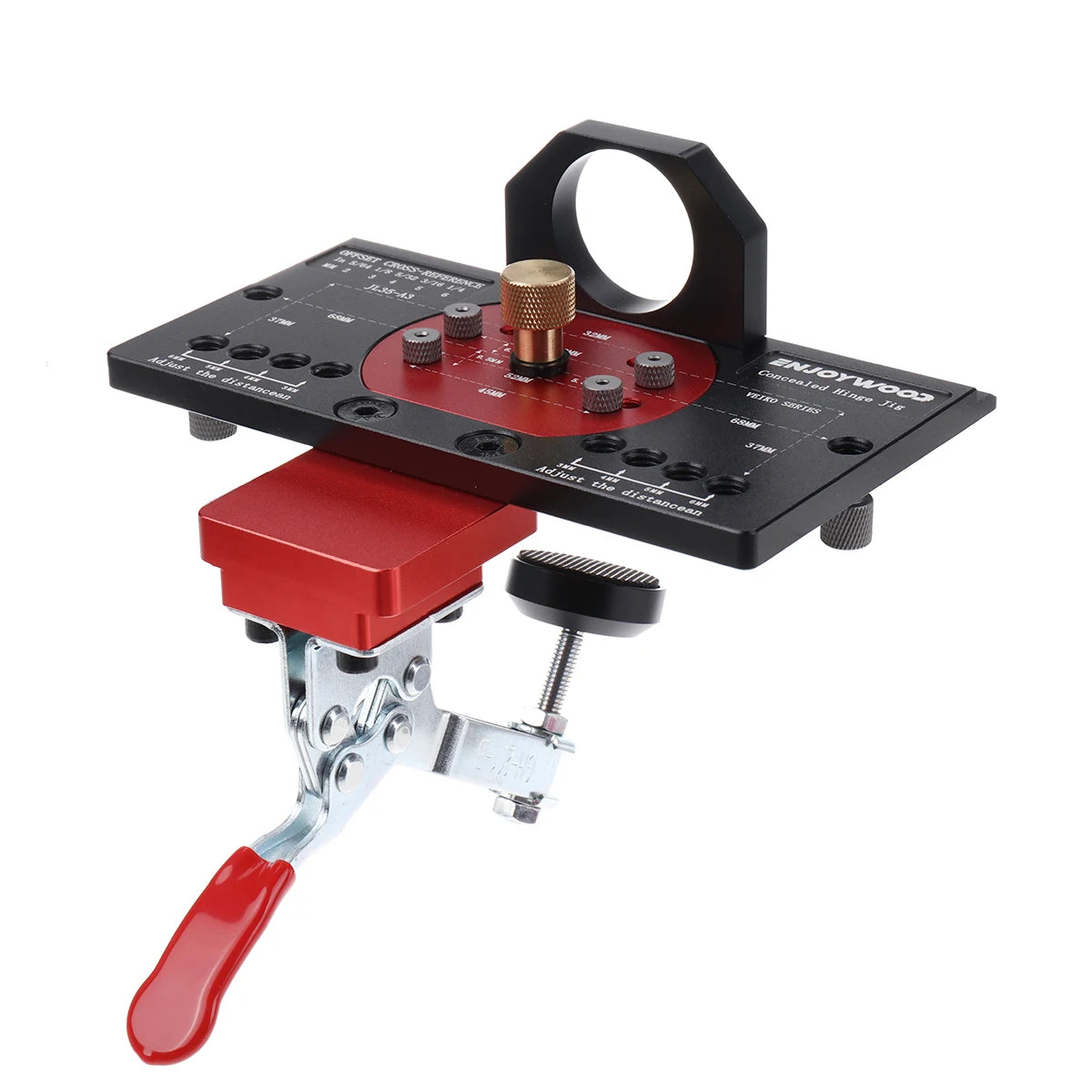

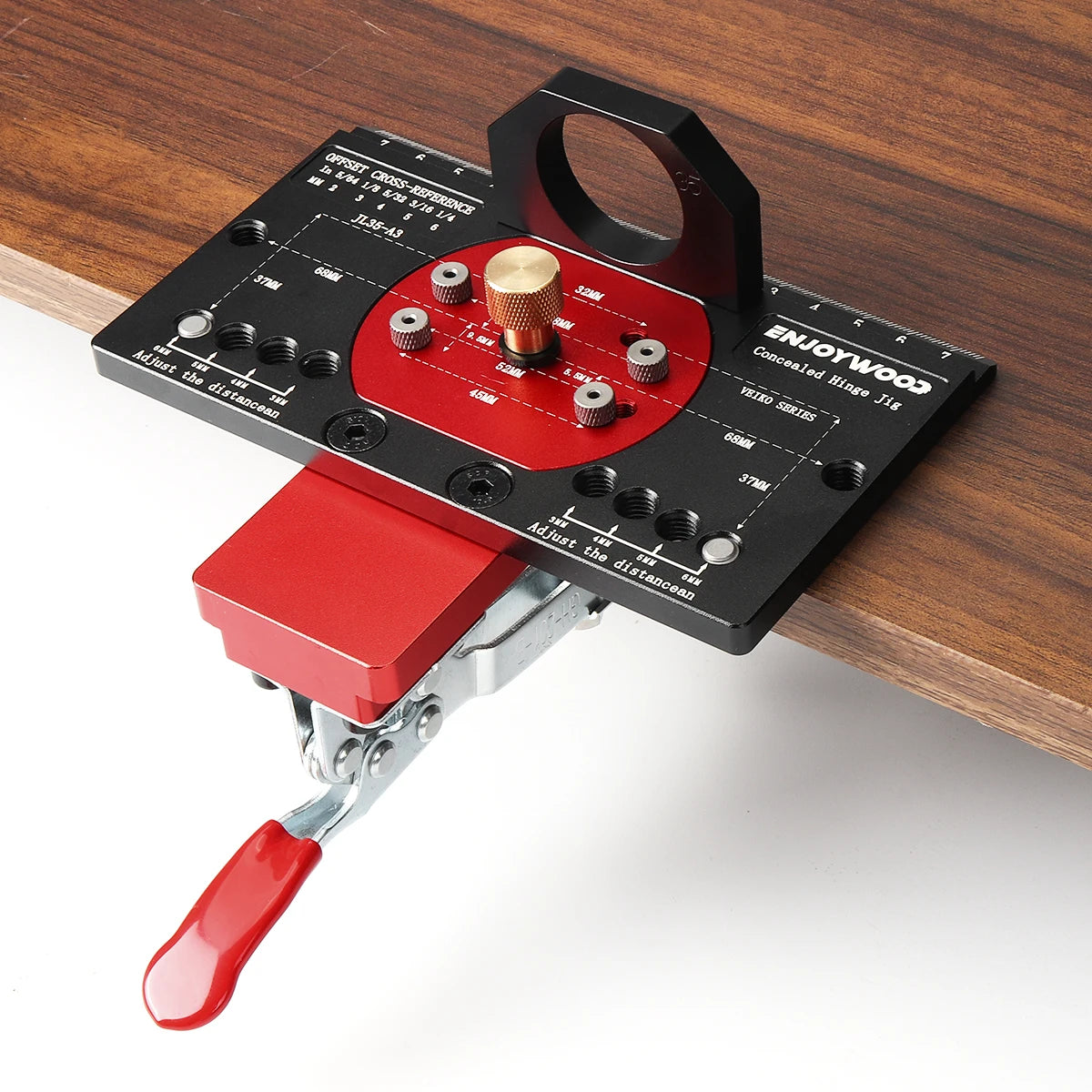

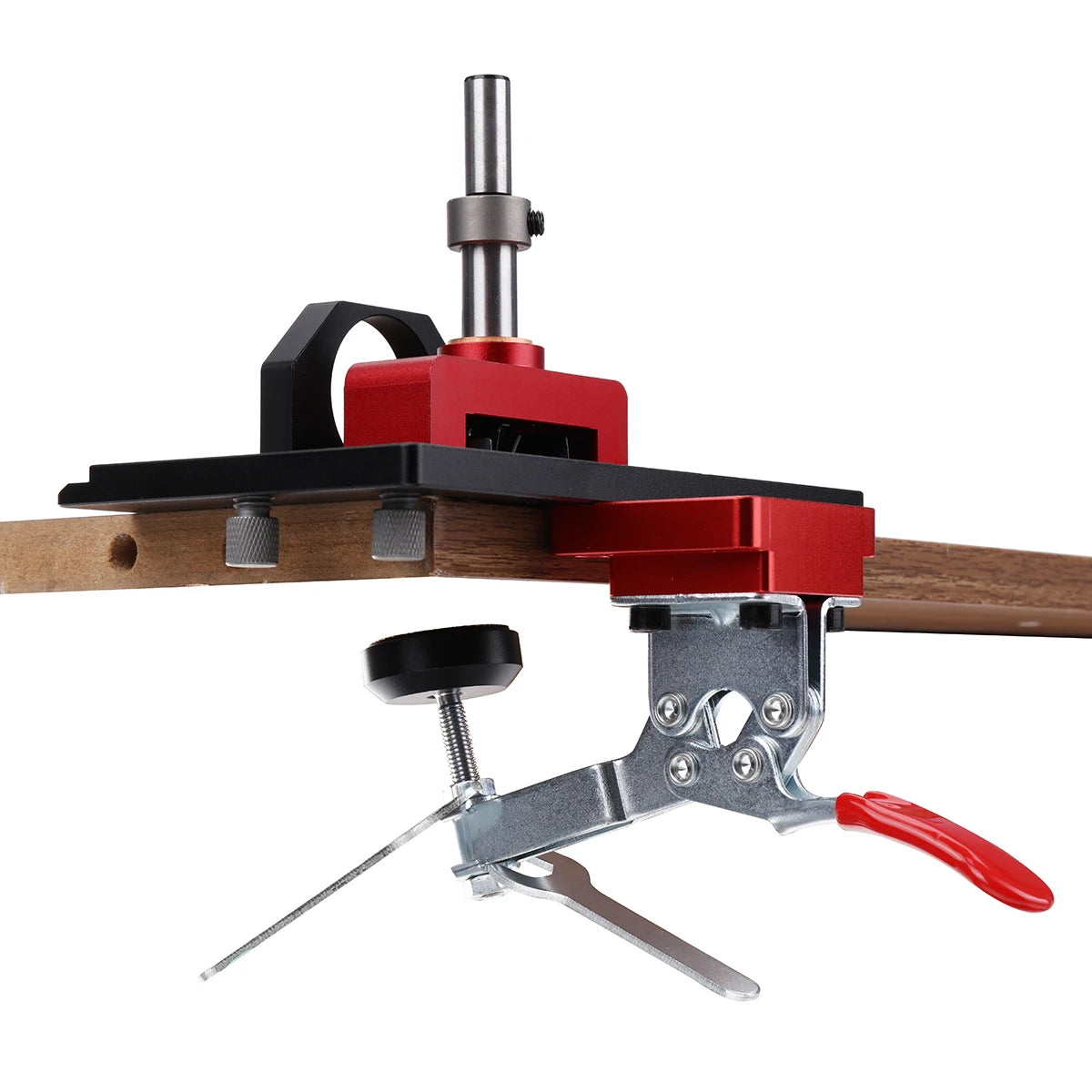

Metal Concealed Hinge Jig With Quick Clamp For Woodworking

Upgrade your cabinet installations with the Metal Concealed Hinge Jig With Quick Clamp for Woodworking. Built from durable aluminum alloy, this all-metal jig delivers superior accuracy and longevity, outperforming plastic alternatives and giving you repeatable results every time. Its integrated design includes built-in double bearings for smooth, continuous drilling, so you achieve clean, precise hinge holes with minimal effort.

Key Features

• High-precision, all-metal construction: aluminum alloy body for enhanced accuracy and durability compared to plastic jigs.
• Dust-free operation: built-in metal dust bracket compatible with 1-3/8 inch vacuum hoses for a cleaner workspace and faster hinge installation.
• Easy depth adjustment: rapid drill depth setting from 0 to 0.6 inches—no extra measuring required.
• Versatile hinge offsets: supports 3 mm, 4 mm, 5 mm, and 6 mm offsets, with adaptable drill guides for a wide range of concealed cabinet door hinges.
• Fast clip design: quick-clamp mechanism for secure, quick attachment to the workpiece, speeding up your woodworking workflow.

Specifications

• Brand: ENJOYWOOD
• Material: Aluminum Alloy
• Hinge Offsets: 3 mm, 4 mm, 5 mm, and 6 mm
• Drill Depth: 0–0.6 inch
• Suitable for: 1/2 inch overlay hinges
• Model Number: Metal Concealed Hinge Jig
• Origin: Mainland China
• Package: Case
• Type: Combination
• Is Customized: No

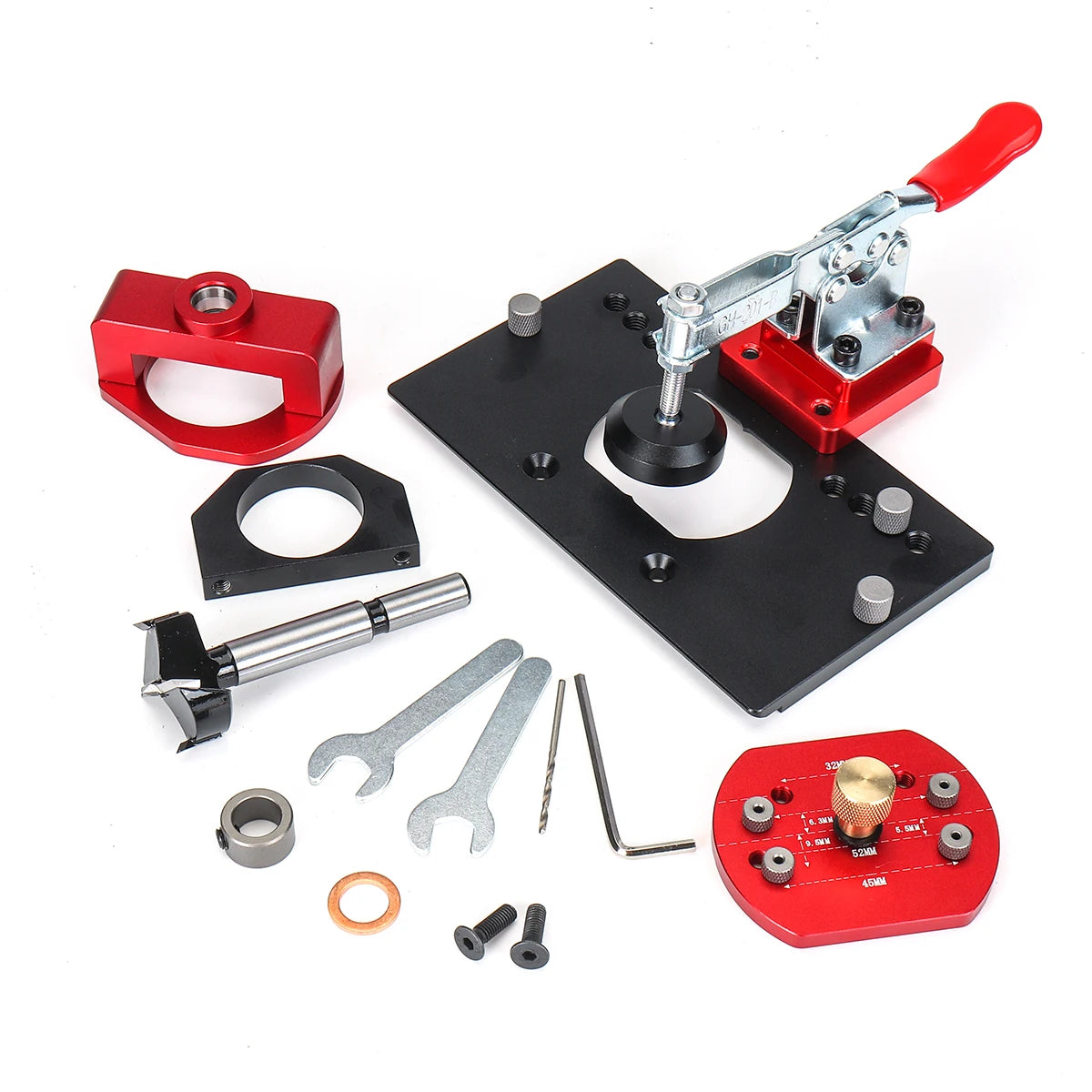

What's in the Box

• 1 x Concealed Hinge Jig
